An access point is a central part of a modern wireless network. It acts as a link between your router and your wireless devices and can significantly improve both coverage and speed in your home. Whether you live in a large house or a smaller flat, an access point can be the key to a more stable and reliable internet connection.
In this article, you’ll get an overview of how access points work, what types exist, and what you should consider before choosing the model that best suits your home.
The article presents a selection of access points that represent different features, technologies, and price ranges. The aim is to provide an informative overview of the market so that you can more easily assess which type of access point matches your needs. The information about the products is based on publicly available descriptions from manufacturers and retailers and has been summarised to create a clear and neutral overview.
Factors to consider when buying an access point
When choosing an access point, there are several technical and practical factors to consider. Here we go through some of the most important ones.
1. Coverage and signal strength
The primary purpose of an access point is to extend or improve the range of your wireless network. Consider how large an area you want to cover and whether walls or floors might affect the signal. More powerful models with multiple antennas usually provide better coverage in larger homes.
2. Speed and standards
Access points support different Wi-Fi standards, such as Wi-Fi 5 (802.11ac) and Wi-Fi 6 (802.11ax). The newer the standard, the higher the speed and the better the handling of many simultaneous devices. If you have many smart home products, Wi-Fi 6 can be an advantage.
3. Dual-band and tri-band
Dual-band access points transmit on both 2.4 GHz and 5 GHz, while tri-band adds an extra 5 GHz band. More bands mean less congestion and higher performance, especially in homes with many wireless devices.
4. Power supply and installation
Some access points are powered via PoE (Power over Ethernet), which makes installation easier since one cable delivers both power and data. Others require a separate power supply. Consider what best suits your home network setup.
5. Security and management
A good access point should support modern security protocols such as WPA3 and offer the option of a guest network. Many models also provide app- or web-based management so you can easily monitor and control the network.
6. Price and features
The price depends on performance, features, and brand. Cheaper models cover basic needs, while more expensive ones offer advanced technology such as mesh support, higher speeds, and better security. Consider which features you actually need.
Products in focus
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and stable connectivity.
The units can be centrally managed via Ubiquiti's UniFi Controller software, which enables monitoring, configuration, and scaling of the network. The design is discreet and can be mounted both on walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the units support PoE+ power supply via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy installation and control.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications apply to individual unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, enabling efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM and 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed for pole mounting and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), making installation easier by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connectivity and flexible installation are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data transfer protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data management.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The unit is designed to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The unit is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rate and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via one cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, enabling unified management of multiple devices, traffic monitoring, and guest network configuration.
The UAP-AC-M-PRO comes with mounting brackets, a PoE adapter, and necessary accessories so that installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data connection protocol: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting brackets, pole mount, screws
Product descriptions
Ubiquiti UniFi UAP-AC-HD-5 is a set of five wireless access points developed to deliver fast and stable Wi-Fi coverage in larger network environments. Each unit supports dual-band operation with 2.4 GHz and 5 GHz frequency bands, providing flexibility and high total bandwidth.
The access point is based on the 802.11ac Wave 2 standard and can handle over 500 simultaneous clients, making it suitable for offices, educational institutions, and public areas with many users. The internal 4T4R MIMO technology contributes to efficient data transfer and stable connectivity.
The units can be centrally managed via Ubiquiti's UniFi Controller software, which enables monitoring, configuration, and scaling of the network. The design is discreet and can be mounted both on walls and ceilings, making installation flexible.
The set comes with mounting brackets but without PoE adapters, as the units support PoE+ power supply via network cable. The low power consumption and wide operating temperature range make them suitable for continuous operation in various environments.
- Dual-band performance: Supports both 2.4 GHz (up to 800 Mbps) and 5 GHz (up to 1.733 Mbps).
- High capacity: Can handle more than 500 simultaneous clients per unit.
- Advanced Wi-Fi 5 technology: 802.11ac Wave 2 with 4T4R MIMO for efficient data transfer.
- Central management: Compatible with UniFi Controller for easy installation and control.
- Flexible mounting: Can be installed on walls or ceilings and comes with mounting brackets.
Pros and cons
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- High performance and stability in environments with many users
- Supports modern Wi-Fi 5 (802.11ac Wave 2)
- Centralised management via UniFi Controller
- Flexible mounting and discreet design
- PoE+ power supply via network cable
Cons
- PoE adapters are not included and must be purchased separately
- Requires UniFi Controller for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-HD-5
- EAN: 0810354026133
- Item number: 2581639
- Quantity per package: 5 (specifications apply to individual unit)
- Wireless standard: IEEE 802.11a/b/g/n/ac, 802.11ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1.733 Gbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- PoE support: PoE+ (802.3at)
- Power consumption: 17 W
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti Rocket M365 is a wireless device developed for outdoor use, where stability and range are crucial. It supports the AirMax protocol, enabling efficient data transfer in both point-to-point and point-to-multipoint configurations.
The device is powered by an Atheros MIPS 24KC processor at 550 MHz and has 64 MB RAM and 8 MB flash memory, providing stable and fast operation. It is equipped with two RP-SMA antenna ports and a 100Base-TX RJ-45 port for network connection.
Rocket M365 is designed for pole mounting and built to withstand outdoor conditions. It supports Power over Ethernet (PoE), making installation easier by combining power and data in one cable.
With a power consumption of 6.5 watts and a frequency band of 3.65 GHz, the device is suitable for professional wireless networks where reliable connectivity and flexible installation are required.
- Outdoor design: Robust construction for installation in demanding environments.
- AirMax protocol: Optimised for efficient wireless communication in professional networks.
- PoE support: Simplifies installation by combining power and data in one cable.
- Flexible mounting: Can be pole-mounted for optimal placement and signal strength.
- Low power consumption: Efficient operation with only 6.5 watts consumption.
Pros and cons
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros and cons
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Pros
- Robust construction for outdoor use
- Supports the AirMax protocol for high performance
- PoE makes installation easier
- Flexible mounting and compact design
- Suitable for both point-to-point and point-to-multipoint installations
Cons
- Limited to the 3.65 GHz frequency band
- Requires compatible AirMax components for full functionality
- The product has been discontinued and may be difficult to obtain
Specifications
- Manufacturer: Ubiquiti
- Model: ROCKETM365
- Item number: 2666928
- EAN: 4250605598143
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x Atheros MIPS 24KC 550 MHz
- RAM: 64 MB SDRAM
- Flash memory: 8 MB
- Data transfer protocol: AirMax
- Frequency band: 3.65 GHz
- Power Over Ethernet (PoE): Supported
- Power consumption: 6.5 watts
- Interface: 2 x antenna (RP-SMA), 1 x 100Base-TX (RJ-45)
- Features: MIMO technology, QoS, pole mounting
- Dimensions (W x D x H): 16 × 8 × 3 cm
- Weight: 500 g
- Operating system: AirOS
Ubiquiti UniFi UAP-AC-SHD is an enterprise access point designed to deliver stable and fast wireless connectivity in demanding environments. The device supports both 2.4 GHz and 5 GHz frequency bands and can achieve speeds of up to 800 Mbps and 1733 Mbps respectively.
The access point is based on Wi-Fi 5 (802.11ac Wave 2) and uses 4T4R MIMO technology to optimise signal strength and coverage. It can handle more than 500 simultaneous clients and supports features such as VLAN, QoS, and Wi-Fi Multimedia (WMM).
The device has built-in antennas and comes with mounting brackets, making it suitable for both wall and ceiling mounting. It is powered via PoE+ and has two Gigabit Ethernet ports, providing flexibility in installation.
With features such as Wireless Intrusion Prevention System (WIPS), airView, and Airtime Fairness, the UAP-AC-SHD is designed to deliver both high performance and advanced network security in professional environments.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1733 Mbps.
- Wi-Fi 5 (802.11ac Wave 2): Provides high capacity and efficient data management.
- Advanced security: Includes WIPS and supports multiple encryption methods.
- Flexible installation: Can be mounted on wall or ceiling and powered via PoE+.
- High capacity: Supports over 500 simultaneous clients.
Pros and cons
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros and cons
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Pros
- High wireless performance with dual-band technology
- Supports many simultaneous users
- Advanced security features such as WIPS and VLAN
- PoE+ power supply for easy installation
- Compatible with UniFi Controller for central management
Cons
- Requires UniFi Controller software for full functionality
- Not suitable for small home networks as it is aimed at enterprise use
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-SHD
- Item number: 2626195
- EAN: 4250605500108
- Device type: Wireless connection (external)
- Wi-Fi standards: IEEE 802.11a/b/g/n/ac & ac Wave 2
- Frequency bands: 2.4 GHz and 5 GHz
- Maximum data rate: 1733 Mbps
- Capacity: Over 500 simultaneous clients, 1–4 BSSID per radio
- Antenna: Internal, 4 antennas
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (17 W consumption)
- Dimensions: 22 × 22 × 4.81 cm
- Weight: 700 g
- Operating temperature: -10 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Compliance standards: IC, FCC, IEEE 802.1Q, 802.3af, 802.3at
Ubiquiti PrismStation PS-5AC is an outdoor access point that uses AirMax ac technology to deliver fast and stable wireless connectivity on the 5 GHz band. The unit is designed to withstand demanding environments and is therefore suitable for installations where reliability and signal strength are important.
The interchangeable antenna horn makes it possible to focus the signal in a specific direction, reducing interference from other sources and improving noise immunity. This makes it particularly suitable for areas with many wireless signals.
The unit is powered via Power over Ethernet (PoE), which simplifies installation as both power and data are transmitted through the same cable. It supports a data rate of up to 500 Mbps and is equipped with a MIPS 74KC processor and 128 MB DDR2 RAM.
With its modular design, AirOS 8 operating system, and features such as QoS, TPC, and airPrism technology, the PrismStation PS-5AC gives network administrators flexibility and control over wireless connections in professional environments.
- AirMax ac technology: Provides high data rate and efficient use of the 5 GHz band.
- Outdoor design: Robust construction that withstands temperatures from -40 °C to 70 °C.
- Modular antenna: Interchangeable horn antenna with 14 dBi gain for focused signal direction.
- PoE support: Power and data via one cable for easy installation.
- Advanced network features: Supports QoS, TPC, airPrism, and TDMA for optimised performance.
Pros and cons
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros and cons
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Pros
- High performance and stable connection on the 5 GHz band
- Robust construction for outdoor use
- Flexible antenna solution with interchangeable horn
- PoE power supply for easy installation
- Advanced network features for professional use
Cons
- Requires compatible PoE injector or switch
- Directional antenna requires precise mounting for optimal coverage
Specifications
- Manufacturer: Ubiquiti
- Model: PS-5AC
- EAN: 817882022668
- Item number: 3083836
- Device type: Wireless connection (external, outdoor)
- Processor: 1 x MIPS 74KC
- RAM: 128 MB DDR2 SDRAM
- Data connection protocol: AirMax ac
- Frequency band: 5 GHz
- Data rate: Up to 500 Mbps
- Antenna: 1 pc., 14 dBi gain
- Interface: 1 x 1000Base-T (PoE) - RJ-45
- Power supply: PoE (Power over Ethernet), 10 W consumption
- Dimensions (W x D x H): 17.4 × 18.4 × 17.4 cm
- Weight: 1.07 kg
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Operating system: AirOS 8
- Compliance standards: IC, FCC
Ubiquiti UniFi AC Mesh Professional UAP-AC-M-PRO is an enterprise access point developed for outdoor use. The device supports dual-band 802.11a/b/g/n/ac and delivers up to 450 Mbps on the 2.4 GHz band and up to 1300 Mbps on the 5 GHz band.
The weather-resistant housing makes it suitable for wall or pole mounting, and the built-in omnidirectional antennas ensure wide coverage in open environments. The device can be powered via 802.3af PoE or the included Gigabit PoE adapter.
The access point is centrally managed through the UniFi Controller software or via UniFi Cloud Key, enabling unified management of multiple devices, traffic monitoring, and guest network configuration.
The UAP-AC-M-PRO comes with mounting brackets, a PoE adapter, and necessary accessories so that installation can be carried out quickly and safely.
- Dual-band performance: Supports both 2.4 GHz and 5 GHz with up to 1750 Mbps total speed.
- Outdoor design: Robust construction that withstands wind and weather.
- 3x3 MIMO technology: Provides high capacity and stable connection for multiple users.
- Central management: Controlled via UniFi Controller or UniFi Cloud Key.
- Flexible power supply: Can be powered via 802.3af PoE or the included PoE adapter.
Pros and cons
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros and cons
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Pros
- High wireless speed and range
- Suitable for outdoor installations
- Easy integration into UniFi networks
- Supports both wall and pole mounting
- Comes with PoE adapter and mounting equipment
Cons
- Requires UniFi Controller for configuration and operation
- Not suitable for use outside the UniFi ecosystem
Specifications
- Manufacturer: Ubiquiti
- Model: UAP-AC-M-PRO
- Item number: 2574978
- EAN: 0810354024764
- Device type: Wireless connection (Wi-Fi 5)
- Form factor: External, outdoor
- Data connection protocol: IEEE 802.11a/b/g/n/ac
- Frequency band: 2.4 GHz and 5 GHz
- Maximum data rate: 450 Mbps (2.4 GHz) + 1300 Mbps (5 GHz)
- Maximum range: 183 metres
- Antennas: 3 internal, 8 dBi gain
- Interface: 2 x 1000Base-T (PoE+) RJ-45
- Power supply: PoE+ (DC 44–57 V), 9 W consumption
- Dimensions (W x D x H): 18.12 × 6.02 × 34.32 cm
- Weight: 633 g
- Operating temperature: -40 °C to 70 °C
- Humidity: 5–95% (non-condensing)
- Supported operating systems: Linux, macOS, Windows 7/8/10
- Included equipment: PoE injector, mounting brackets, pole mount, screws
Different types of access points
Access points come in several variants that differ in function, design, and use. The choice depends on how you want to extend or optimise your network.
1. Standard access points
These models connect directly to the router via cable and broadcast a wireless signal. They are ideal for extending coverage in a specific area, such as a basement or an office.
2. Mesh access points
Mesh systems consist of multiple units that work together to create a cohesive network with seamless coverage. They are suitable for larger homes where the signal needs to remain stable across multiple rooms and floors.
3. Outdoor access points
Outdoor models are designed to withstand weather conditions and are used to cover patios, gardens, or garages with Wi-Fi. They usually have reinforced casings and longer range.
4. Enterprise access points
These professional models are intended for businesses or large buildings but can also be used in advanced smart home installations. They offer high capacity, central management, and advanced security features.
Different brands of access points
The market for access points is broad, and several manufacturers specialise in providing solutions for both private and professional users.

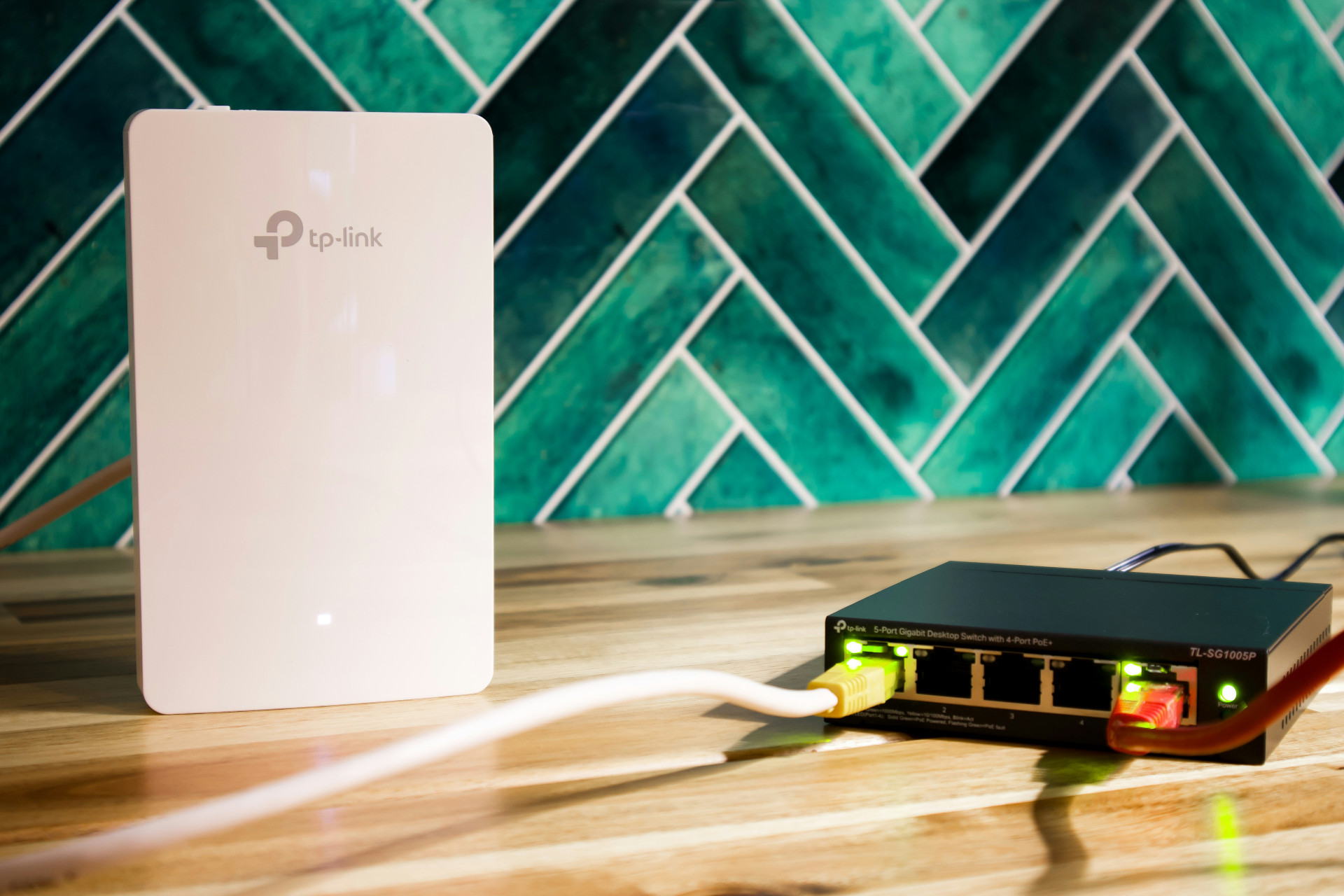

TP-Link
TP-Link offers a wide range of both traditional and mesh-based access points. The products are known for user-friendly installation, stable connections, and good value for money.
Ubiquiti
Ubiquiti is popular among both tech enthusiasts and professionals. Their UniFi series provides advanced network management and high performance, making them suitable for larger homes and offices.
Netgear
Netgear manufactures access points with a focus on speed and reliability. Their Orbi series is a well-known mesh system, while the Pro series targets more demanding users.
ASUS
ASUS combines high performance with modern design and easy app control. Their access points and routers often support the latest Wi-Fi standards and are suitable for gaming and streaming.
D-Link
D-Link offers affordable solutions for both small and medium-sized homes. Many models support smart home integrations and have intuitive management tools.
Frequently asked questions
What is the difference between a router and an access point?
A router distributes the internet connection to multiple devices, while an access point extends or improves the wireless signal. However, many modern routers have built-in access point functionality.
How many access points do I need?
It depends on the size and layout of your home. One access point can cover a smaller home, while larger homes or houses with multiple floors often require two or more for optimal coverage.
Can I use an access point with my existing router?
Yes, most access points can easily be integrated into an existing network. You just need to connect it via cable and configure it to work with the router without causing interference.
What does PoE mean?
PoE stands for Power over Ethernet and means that the access point receives power through the network cable. This makes installation easier since you don’t need a separate power adapter.
How do I protect my wireless network?
Always use strong passwords and enable the latest security standard (WPA3 if possible). Update the firmware regularly and avoid sharing access to your main network with guests – instead, use a guest network.
Læs også:
